Zabbix3.4.11使用Orabbix插件监控Oracle 11g R2

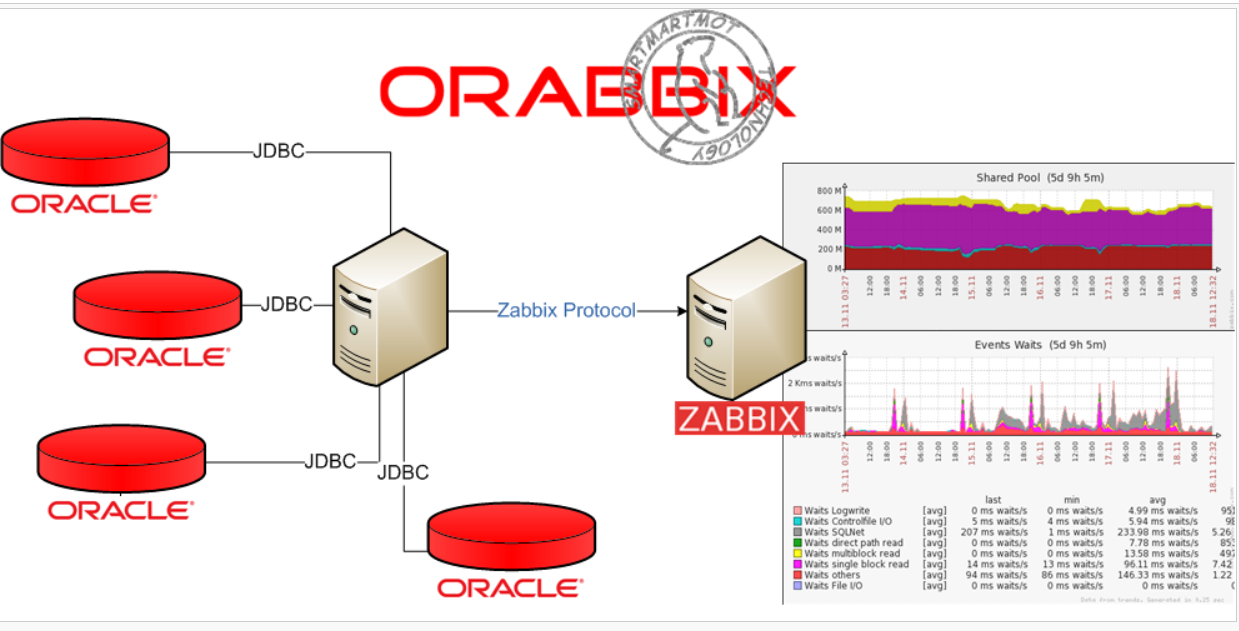

Orabbix简介
Orabbix是设计用来为zabbix监控Oracle的数据库的插件，它提供多层次的监控，包括可用性和服务器性能的指标。
Orabbix监控的内容：

1. 数据库版本

2. 归档文件

3. 等待的事件（如文件的I/O，单块的读，多块的读，直接读，SQLNet消息，控制文件I/O，日志写等）

4. HitRatio（监控Hit Ratio的触发，表/存储过程，SQLArea，Body）

5. 逻辑I/O（当前读操作，持续的读操作，块的更改）

6. PGA

7. SGA（固定的缓冲，JAVApool，Large Pool，Log Buffer，Shared Pool，Buffer Cache）

8. 物理I/O（重写操作，数据文件写操作，数据文件读操作）

9. SharePool（PoolDictionary Cache, Pool Free Memory, Library Cache,Sql Area ,Misc.）

10. Pin Hit Ratio(monitor Hit Ratio on Trigger, Tables/Procedures, SQLArea,Body)

11. Session/Processes(monitor Sessions and processes)

12. Session (ActiveSession, Inactive Sessions, System Session)

安装步骤如下：
1、JAVA环境配置
若是没有java 需要安装JDK环境：
jdk官方下载地址 http://download.oracle.com/otn/java/jdk/7u80-b15/jdk-7u80-linux-x64.tar.gz

mkdir /usr/lib/jvm/
tar -xvf jdk-7u80-linux-x64.tar.gz -C /usr/lib/jvm/
echo "export JAVA_HOME=/usr/lib/jvm/jdk1.7.0_80" >>  /etc/profile
source /etc/profile
echo "export JRE_HOME=${JAVA_HOME}/jre" >>  /etc/profile
source /etc/profile
echo "export CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib" >>  /etc/profile
echo "export PATH=${JAVA_HOME}/bin:$PATH" >>  /etc/profile
source /etc/profile
sudo update-alternatives --install /usr/bin/java java /usr/lib/jvm/jdk1.7.0_80/bin/java 300
sudo update-alternatives --install /usr/bin/javac javac /usr/lib/jvm/jdk1.7.0_80/bin/javac 300

安装完毕查看版本：

[root@dbnode1 opt]# java -version
java version "1.7.0_80"
Java(TM) SE Runtime Environment (build 1.7.0_80-b15)
Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode)

2、Orabbix插件的下载安装
http://www.smartmarmot.com/product/orabbix/download/
也可以直接搜索下载，目前最新版本为1.2.3

创建一个目录作为orabbix的源地址：

mkdir -p /usr/local/orabbix
解压缩插件：
unzip -n orabbix-1.2.3.zip -d /usr/local/orabbix/

3、更改配置文件：

cd /usr/local/orabbix/
cp conf/config.props.sample conf/config.props
添加系统启动脚本：
cp init.d/orabbix /etc/init.d/orabbix
并修改路径：
vim /etc/init.d/orabbix
orabbix=/usr/local/orabbix
给启动脚本加执行权限

chmod +x /usr/local/orabbix/run.sh
chmod +x /etc/init.d/orabbix

修改配置文件内如如下

cat /usr/local/orabbix/conf/config.props | grep -v "^$"|grep -v "^#"

ZabbixServerList=ZabbixServer1

ZabbixServer1.Address=192.168.3.209
ZabbixServer1.Port=10051


OrabbixDaemon.PidFile=./logs/orabbix.pid
OrabbixDaemon.Sleep=300
OrabbixDaemon.MaxThreadNumber=100

DatabaseList=dbnode1

DatabaseList.MaxActive=10
DatabaseList.MaxWait=100
DatabaseList.MaxIdle=1

dbnode1.Url=jdbc:oracle:thin:@192.168.2.110:1521:ORCL
dbnode1.User=zabbix
dbnode1.Password=xxxxxxxx
dbnode1.MaxActive=10
dbnode1.MaxWait=100
dbnode1.MaxIdle=1
dbnode1.QueryListFile=./conf/query.props

4、使用DBA账号登陆oracle控制台，创建zabbix用户并赋权

CREATE USER ZABBIX IDENTIFIED BY ZABBIX2018 DEFAULT TABLESPACE SYSTEM TEMPORARY TABLESPACE TEMP PROFILE DEFAULT ACCOUNT UNLOCK;

GRANT ALTER SESSION TO ZABBIX;
GRANT CREATE SESSION TO ZABBIX;
GRANT CONNECT TO ZABBIX;
GRANT RESOURCE TO ZABBIX;
ALTER USER ZABBIX DEFAULT ROLE ALL;
GRANT SELECT ON V_$INSTANCE TO ZABBIX;
GRANT SELECT ON DBA_USERS TO ZABBIX;
GRANT SELECT ON V_$LOG_HISTORY TO ZABBIX;
GRANT SELECT ON V_$PARAMETER TO ZABBIX;
GRANT SELECT ON SYS.DBA_AUDIT_SESSION TO ZABBIX;
GRANT SELECT ON V_$LOCK TO ZABBIX;
GRANT SELECT ON DBA_REGISTRY TO ZABBIX;
GRANT SELECT ON V_$LIBRARYCACHE TO ZABBIX;
GRANT SELECT ON V_$SYSSTAT TO ZABBIX;
GRANT SELECT ON V_$LATCH TO ZABBIX;
GRANT SELECT ON V_$PGASTAT TO ZABBIX;
GRANT SELECT ON V_$SGASTAT TO ZABBIX;
GRANT SELECT ON V_$LIBRARYCACHE TO ZABBIX;
GRANT SELECT ON V_$PROCESS TO ZABBIX;
GRANT SELECT ON DBA_DATA_FILES TO ZABBIX;
GRANT SELECT ON DBA_TEMP_FILES TO ZABBIX;
GRANT SELECT ON DBA_FREE_SPACE TO ZABBIX;
GRANT SELECT ON V_$SYSTEM_EVENT TO ZABBIX;
GRANT SELECT ANY TABLE TO ZABBIX;
GRANT SELECT ANY DICTIONARY TO ZABBIX;
GRANT UNLIMITED TABLESPACE TO ZABBIX;

以下授权需要使用sysdba账号登陆

GRANT SELECT ON V_$LOG_HISTORY TO ZABBIX;
GRANT SELECT ON SYS.DBA_AUDIT_SESSION TO ZABBIX;
GRANT SELECT ON V_$LIBRARYCACHE TO ZABBIX;
GRANT SELECT ON DBA_DATA_FILES TO ZABBIX;
GRANT SELECT ON DBA_TEMP_FILES TO ZABBIX;
GRANT SELECT ON DBA_FREE_SPACE TO ZABBIX;
GRANT SELECT ON V_$SYSTEM_EVENT TO ZABBIX;
GRANT SELECT ON V_$SESSION TO ZABBIX;
exec dbms_network_acl_admin.create_acl(acl => 'resolve.xml',description => 'resolve acl', principal =>'ZABBIX', is_grant => true, privilege => 'resolve');
exec dbms_network_acl_admin.assign_acl(acl => 'resolve.xml', host =>'*');
COMMIT;

5、启动orabbix服务、加入开机启动：

/etc/init.d/orabbix start
chkconfig orabbix on

6、查看日志

tail -f /usr/local/orabbix/logs
 2018-07-17 11:36:36,662 [pool-1-thread-1] ERROR Orabbix - Error on DBEnquiry on query=archive on database=dbnode1 Error returned is java.lang.IllegalArgumentException: null value for key 'archive'
 2018-07-17 11:36:36,664 [pool-1-thread-1] WARN  Orabbix - Error while executing ->audit- on database ->dbnode1- Exception received ORA-00942: table or view does not exist

 2018-07-17 11:36:36,665 [pool-1-thread-1] WARN  Orabbix - Error while executing ->dbblockgets- on database ->dbnode1- Exception received ORA-00942: table or view does not exist

 2018-07-17 11:36:36,665 [pool-1-thread-1] ERROR Orabbix - Error on DBEnquiry on query=dbblockgets on database=dbnode1 Error returned is java.lang.IllegalArgumentException: null value for key 'dbblockgets
'
 2018-07-17 11:36:36,666 [pool-1-thread-1] WARN  Orabbix - Error while executing ->dbconsistentgets- on database ->dbnode1- Exception received ORA-00942: table or view does not exist

 2018-07-17 11:36:36,666 [pool-1-thread-1] ERROR Orabbix - Error on DBEnquiry on query=dbconsistentgets on database=dbnode1 Error returned is java.lang.IllegalArgumentException: null value for key 'dbcons
istentgets'
 2018-07-17 11:36:36,667 [pool-1-thread-1] WARN  Orabbix - Error while executing ->dbhitratio- on database ->dbnode1- Exception received ORA-00942: table or view does not exist

 2018-07-17 11:36:36,667 [pool-1-thread-1] ERROR Orabbix - Error on DBEnquiry on query=dbhitratio on database=dbnode1 Error returned is java.lang.IllegalArgumentException: null value for key 'dbhitratio'
 2018-07-17 11:36:36,668 [pool-1-thread-1] WARN  Orabbix - Error while executing ->dbphysicalread- on database ->dbnode1- Exception received ORA-00942: table or view does not exist

 2018-07-17 11:36:36,668 [pool-1-thread-1] ERROR Orabbix - Error on DBEnquiry on query=dbphysicalread on database=dbnode1 Error returned is java.lang.IllegalArgumentException: null value for key 'dbphysic
alread'
 2018-07-17 11:36:36,670 [pool-1-thread-1] WARN  Orabbix - Error while executing ->dbversion- on database ->dbnode1- Exception received ORA-00942: table or view does not exist

如果有以上类似的报错，基本都是zabbix用户权限不够导致，参考赋权；
正常log如下：

 2018-07-20 17:06:16,915 [pool-1-thread-47] INFO  Orabbix - Done with dbJob on database dbnode1 QueryList elapsed time 18537 ms
 2018-07-20 17:06:58,428 [pool-1-thread-48] INFO  Orabbix - Done with dbJob on database dbnode1 QueryList elapsed time 48 ms
 2018-07-20 17:08:16,967 [pool-1-thread-49] INFO  Orabbix - Done with dbJob on database dbnode1 QueryList elapsed time 18586 ms
 2018-07-20 17:08:58,418 [pool-1-thread-50] INFO  Orabbix - Done with dbJob on database dbnode1 QueryList elapsed time 35 ms
 2018-07-20 17:10:17,033 [pool-1-thread-51] INFO  Orabbix - Done with dbJob on database dbnode1 QueryList elapsed time 18648 ms
 2018-07-20 17:10:58,418 [pool-1-thread-52] INFO  Orabbix - Done with dbJob on database dbnode1 QueryList elapsed time 31 ms
 2018-07-20 17:12:17,225 [pool-1-thread-53] INFO  Orabbix - Done with dbJob on database dbnode1 QueryList elapsed time 18836 ms
 2018-07-20 17:12:58,426 [pool-1-thread-54] INFO  Orabbix - Done with dbJob on database dbnode1 QueryList elapsed time 35 ms
 2018-07-20 17:14:17,013 [pool-1-thread-55] INFO  Orabbix - Done with dbJob on database dbnode1 QueryList elapsed time 18621 ms
 2018-07-20 17:14:58,429 [pool-1-thread-56] INFO  Orabbix - Done with dbJob on database dbnode1 QueryList elapsed time 35 ms
 2018-07-20 17:16:17,087 [pool-1-thread-57] INFO  Orabbix - Done with dbJob on database dbnode1 QueryList elapsed time 18691 ms

/usr/local/orabbix下面有个template目录，里面是zabbix模板，将这些模板copy到本地机器上，然后登陆zabbix，把模板导入进去，就可以配置机器了，zabbix是3.x以上版本的话直接导入不进去，只能先导入2.x版本，然后再导出，然后导入3.x
或者直接用修改后Zabbix3.x可以直接使用的模板
zabbix_oracle_orabbix.zip

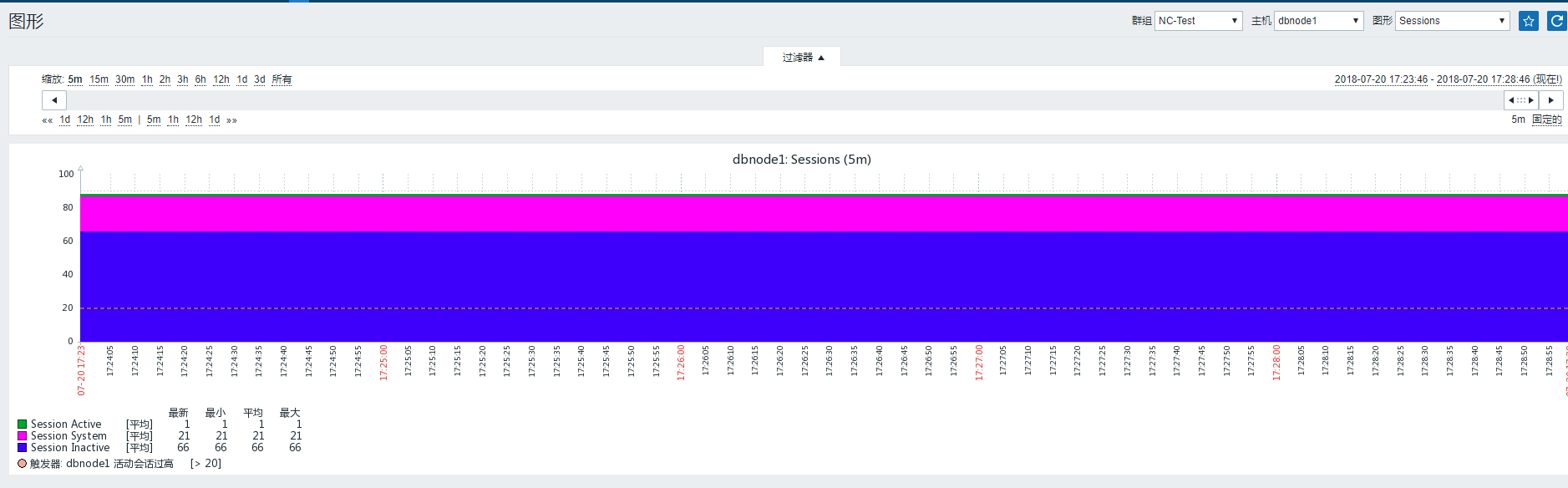

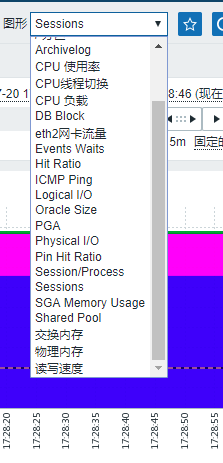

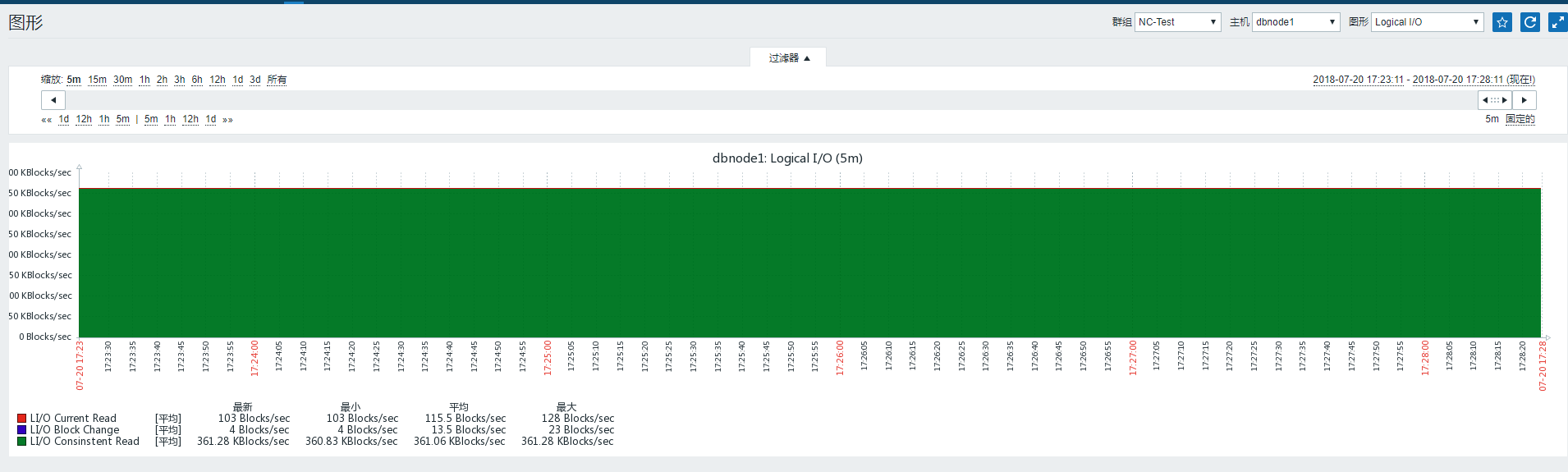

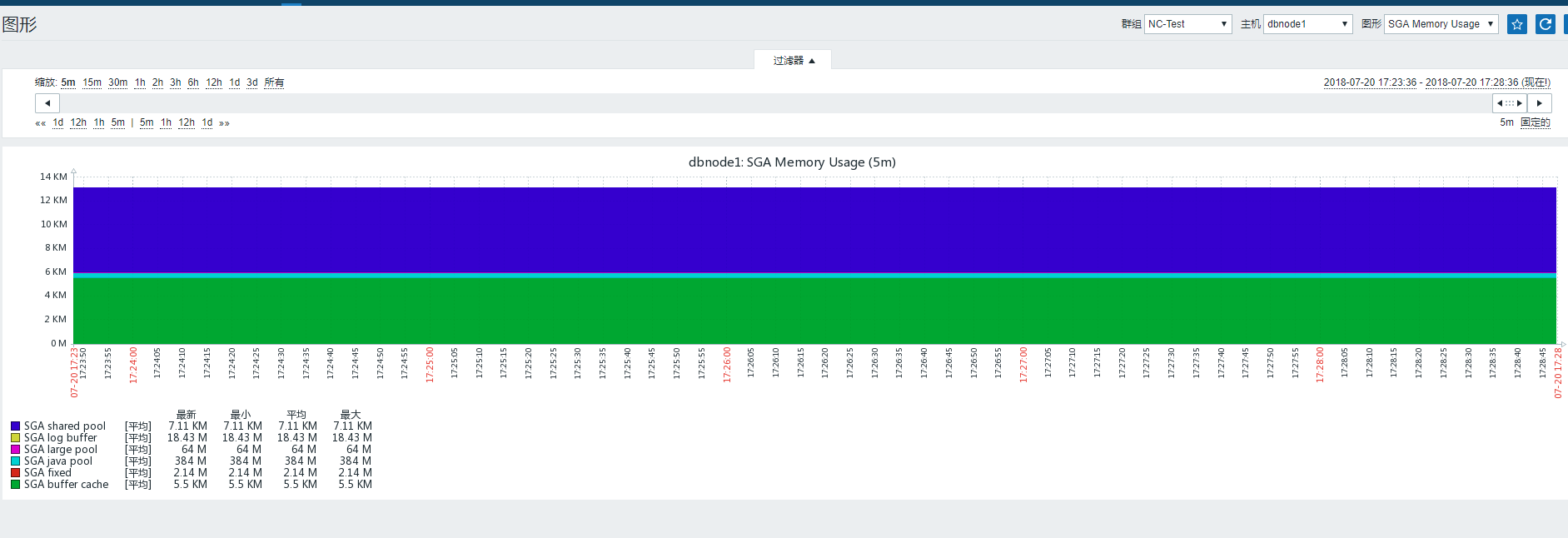

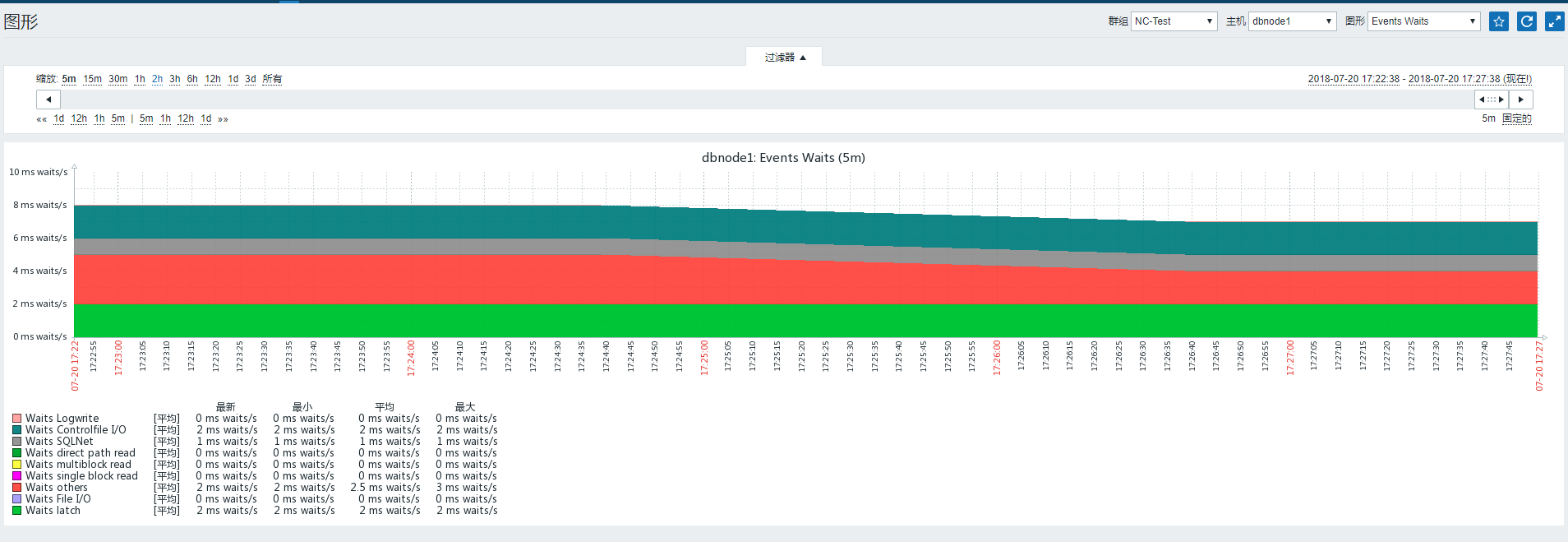

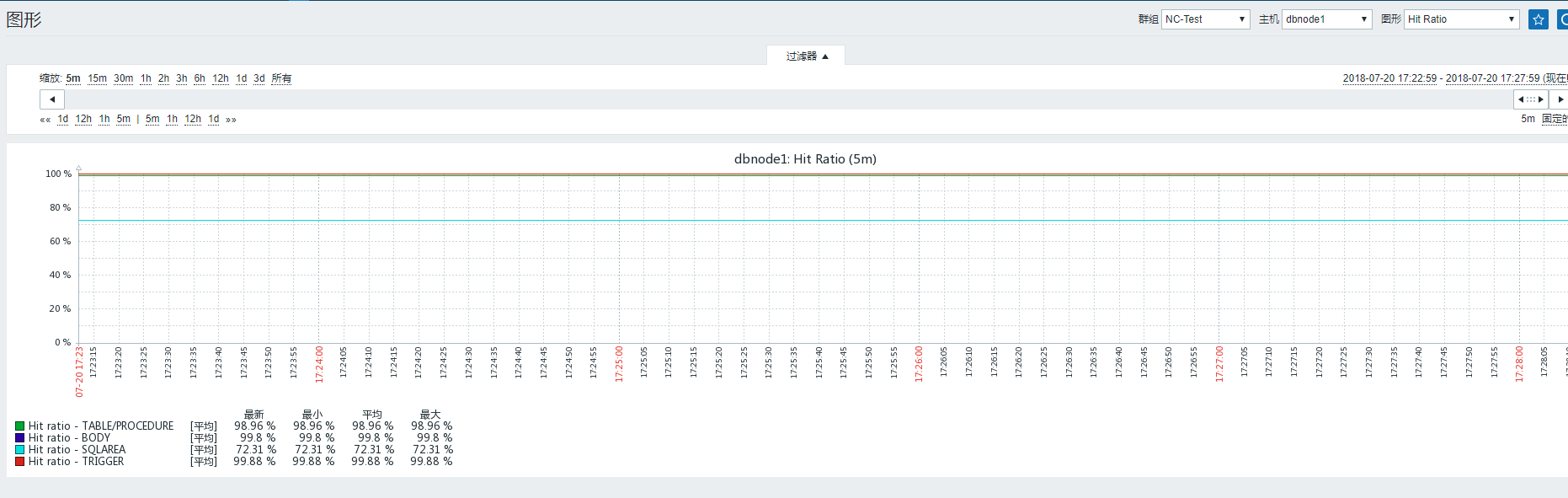

导入，并添加对应模板即可，完成以后效果如下：
VIA: http://www.smartmarmot.com/wiki/index.php?title=Orabbix
https://blog.csdn.net/tianhua79658788/article/details/77969426
